hjQiblaCompass

Modern Android library that renders a customizable Qibla compass using Kotlin and Jetpack Compose. It provides lifecycle-aware sensor and location helpers together with a ready-to-use compass composable that you can drop into your app.

Features

• 100% Kotlin + Jetpack Compose implementation; no legacy activities or XML views.
• Lifecycle-aware sensor reader with graceful fallbacks when rotation-vector sensors are missing.
• Location helper with permission-aware updates and automatic last-known-location fallback.
• Highly customizable UI: dial/indicator painters, color tints, info overlays, marker visibility, and animation duration.
• Sample app demonstrating permission flow, dual compass styles, and live status cards.

Get Started

1. Add the dependency

Make sure your project is using Android Gradle Plugin 8.2+, Kotlin 1.9+, and has Compose enabled.

// settings.gradle
pluginManagement {
    repositories {
        google()
        mavenCentral()
    }
}

// build.gradle (project)
allprojects {
    repositories {
        google()
        mavenCentral()
    }
}

// module-level build.gradle(.kts)
dependencies {
    implementation("io.github.hassaanjamil:qiblaCompass:1.0.0")
}

⚠️ The library is built with Compose. Ensure your module has buildFeatures { compose = true } and the appropriate composeOptions configured.

2. Request permissions (if you need automatic location)

The helper rememberLocationState expects that at least coarse or fine location permission has been granted. Handle the runtime permission flow in your composable or activity.

3. Render the compass

@Composable
fun QiblaScreen() {
    val context = LocalContext.current
    var hasLocationPermission by remember { mutableStateOf(context.hasLocationPermission()) }
    val permissionLauncher = rememberLauncherForActivityResult(ActivityResultContracts.RequestMultiplePermissions()) { result ->
        hasLocationPermission = result[Manifest.permission.ACCESS_FINE_LOCATION] == true ||
            result[Manifest.permission.ACCESS_COARSE_LOCATION] == true
    }

    val azimuthState = rememberCompassAzimuth()
    val locationState = rememberLocationState(hasLocationPermission)
    val qiblaDirection = rememberQiblaDirection(locationState.value).value

    QiblaCompass(
        azimuthDegrees = azimuthState.value,
        qiblaDirectionDegrees = qiblaDirection,
        location = locationState.value,
        animationDurationMillis = 260,
        dialTint = MaterialTheme.colorScheme.primary.copy(alpha = 0.15f),
        indicatorTint = MaterialTheme.colorScheme.secondary
    )
}

Customization Options

QiblaCompass exposes several parameters so you can brand the experience:

• dialPainter / indicatorPainter: Replace default resources with your own Painter instances.
• dialTint, indicatorTint, backgroundColor, borderColor, markerColor, markerContentColor.
• animationDurationMillis: Control how fast the indicator reacts to sensor updates.
• showNorthMarker: Toggle the top “N” badge.
• infoContent: Provide custom overlay content; the default shows heading, Qibla direction, bearing difference, and coordinates.
• showInfoPanel: Hide or show the overlay entirely.

For location helpers:

• rememberLocationState lets you configure min update time/distance and providers list.

Sample App

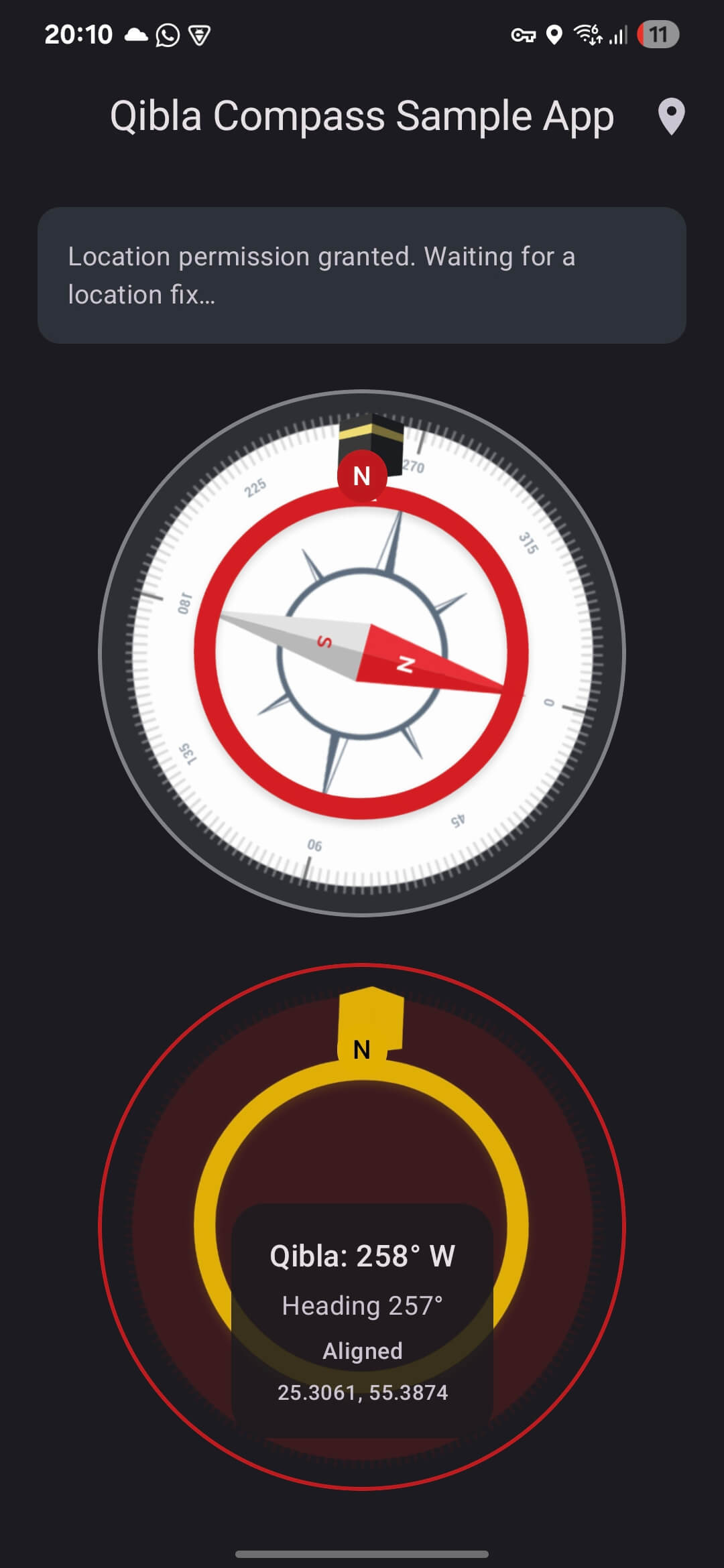

The app module contains a Compose-based sample that demonstrates permission handling and two styling approaches. Launch it to see the compass in action.

./gradlew :app:assembleDebug

Contributing

Pull requests and issues are welcome! Please open a discussion if you have suggestions for new customization points or sensor improvements.

License

Apache License 2.0 – see LICENSE for details.
